High-Efficiency Condensing Boilers vs. Standard Gas Hydronic Boilers

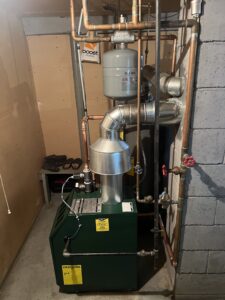

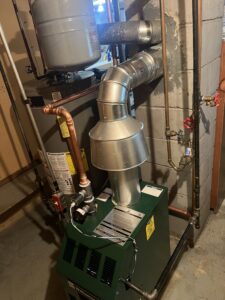

🔥 Gas Hydronic Boilers (Standard Efficiency)
A standard gas hydronic boiler heats water and sends it through baseboards or radiators to warm your home.
It burns natural gas and vents the hot combustion gases outside. However, much of that heat escapes through the flue — meaning lower efficiency (typically 80–85%).
These are reliable and simple systems but use more fuel over time.

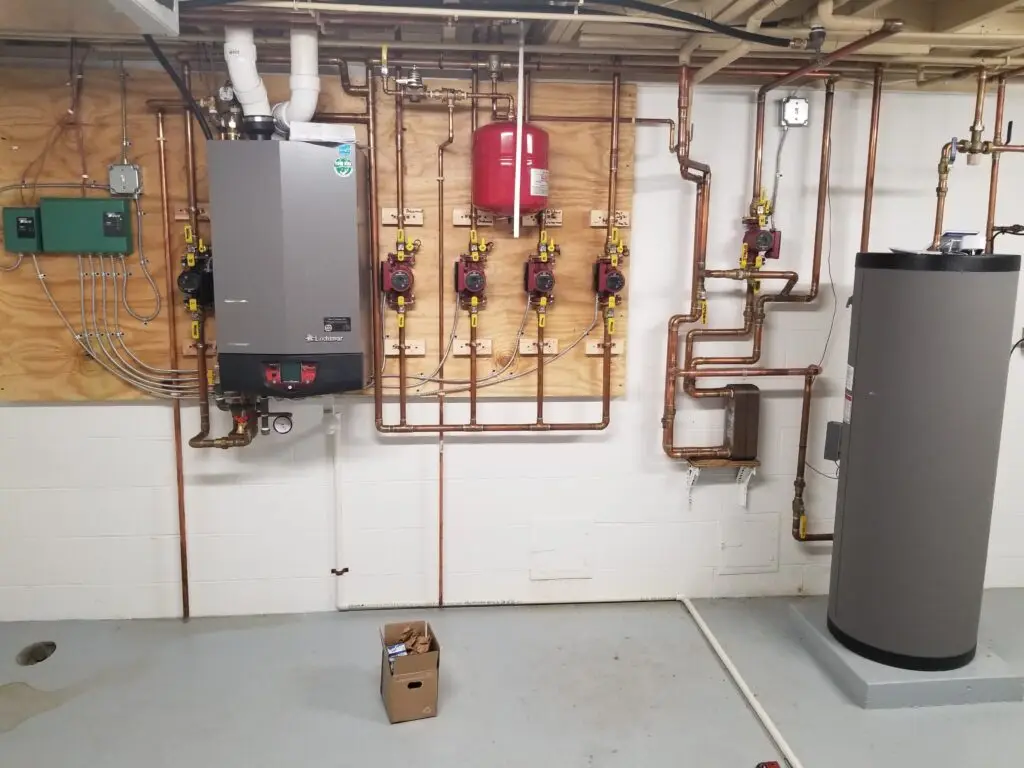

⚡ High-Efficiency Condensing Boilers
A condensing boiler is an upgraded version that captures extra heat from the exhaust gases before they leave the flue.
It uses a secondary heat exchanger to extract energy from the water vapor (steam) produced during combustion. This process condenses the vapor back into water — recovering heat that would normally be wasted.
The result? Efficiency levels of 95% or higher, lower gas bills, and reduced emissions. Condensing boilers often have sealed combustion chambers and PVC venting instead of metal chimneys.
⚙️ Key Functional Difference
| Feature | Gas Hydronic Boiler | High-Efficiency Condensing Boiler |
|---|---|---|
| Efficiency | 80–85% | 90–97% |
| Technology | Single heat exchanger | Dual heat exchanger (recovers flue gas heat) |
| Venting | Metal flue, high temp | PVC/plastic, low temp |
| Condensate | No condensate | Produces condensate that must be drained |
| Fuel Savings | Moderate | Up to 15–20% lower energy cost |
⚡ Electric Water Heater vs. Hybrid Water Heater
💧 Standard Electric Water Heater
A traditional electric water heater uses heating elements inside the tank to warm the water.
It’s simple, reliable, and affordable to install — but it runs continuously to maintain the set temperature, which can increase energy use.
Key Features:
Lower upfront cost
Easy installation and maintenance
Uses electric resistance heating
Ideal for smaller homes or low hot-water demand

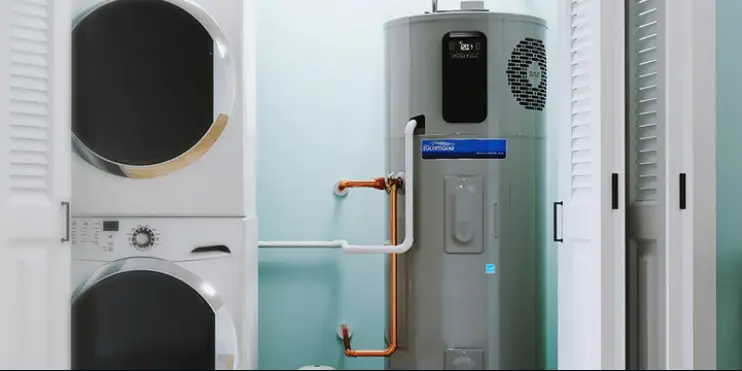

🌿 Hybrid (Heat Pump) Water Heater
A hybrid water heater combines standard electric heating elements with a built-in heat pump that draws heat from the surrounding air to warm the water.
This process uses far less electricity, making it up to 3–4 times more efficient than a standard model.
Key Features:
Significantly lower energy consumption
Higher initial cost but long-term savings
Requires adequate space and air circulation
Ideal for larger homes or high hot-water usage
⚙️ Key Comparison
| Feature | Electric Water Heater | Hybrid Water Heater |
|---|---|---|
| Efficiency | 90–95% | 300–400% (3–4x more efficient) |
| Heating Method | Electric elements only | Heat pump + electric backup |
| Operating Cost | Higher | Much lower |
| Upfront Cost | Lower | Higher |
| Best For | Smaller homes, low usage | Energy savings, higher demand |
